Coefficients

The logistic regression coefficients indicate the impact of each feature on the log-odds of the outcome. The coefficients can be interpreted as follows:

• Positive Coefficient: An increase in the feature value leads to an increase in the log-odds of success (higher probability of success).
• Negative Coefficient: An increase in the feature value leads to a decrease in the log-odds of success (lower probability of success).

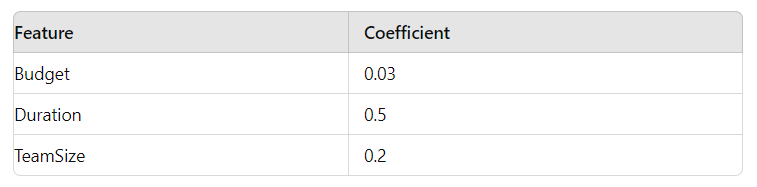

Let's assume the coefficients are as follows:

• Budget: For each additional dollar increase in the budget, the log-odds of the project being successful increase by 0.03. This means a higher budget slightly increases the probability of success.
• Duration: For each additional month increase in the project duration, the log-odds of the project being successful increase by 0.5. This means longer projects have a higher probability of success.
• TeamSize: For each additional team member, the log-odds of the project being successful increase by 0.2. This means larger teams slightly increase the probability of success.

Interpretation

From the coefficients, you can see that the duration of the project has the most significant impact on the success of the project, followed by the team size and budget.

By understanding the logistic regression coefficients and model evaluation metrics, you can make informed decisions about the factors that most significantly impact project success. This information can help in planning and allocating resources more effectively to increase the likelihood of project success.

Performance Metrics

Evaluation Metrics

• Accuracy: The proportion of correctly classified instances.
• Precision: The proportion of positive predictions that are actually positive.
• Recall: The proportion of actual positives that are correctly identified.
• F1-Score: The harmonic mean of precision and recall.

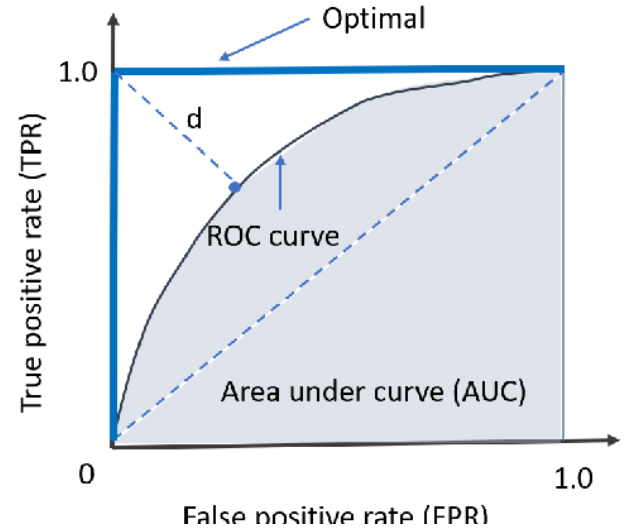

ROC Curve and AUC

ROC: Plots the true positive rate against the false positive rate at various threshold settings.

AUC: The area under the ROC curve, representing the model's ability to distinguish between classes.

Strenght and Weaknesses

Advantages

• Simple and interpretable.
• Effective for binary classification.
• Probabilistic interpretation.

Limitations

• Assumes a linear relationship between predictors and the log-odds.
• Can overfit with many features or small sample sizes.

Types of Logistic Regression

1. Binary Logistic Regression

This is the most common type of logistic regression used when the response variable has two possible outcomes (e.g., success/failure, yes/no).

Example: Predicting whether a project will be successful or not.

2. Multinomial Logistic Regression

Used when the response variable has more than two categories that are not ordered.

Example: Predicting the category of a project (e.g., high priority, medium priority, low priority).

3. Ordinal Logistic Regression:

Used when the response variable has more than two categories with a natural order.

Example: Predicting the severity of an issue (e.g., low, medium, high).

4. Regularized Logistic Regression

Adds a penalty to the logistic regression to prevent overfitting by discouraging complex models.

Example: Predicting customer churn with many features.

5. Penalized Logistic Regression

Similar to regularized logistic regression, it applies a penalty to the coefficients to reduce overfitting.

Example: Disease prediction models where the number of predictors is high.

6. Logistic Regression with Interaction Terms

Includes interaction terms between predictors to capture the combined effect of multiple features.

Example: Predicting sales success considering both marketing spend and the number of sales calls.

7. Hierarchical Logistic Regression

Used when data is nested or grouped, accounting for the hierarchical structure in the data.

Example: Predicting student success where students are nested within schools.

8. Firth Logistic Regression

A method to reduce bias in the maximum likelihood estimates, especially useful for small sample sizes or rare events.

Example: Predicting rare adverse events in clinical trials.

Applications of Logistics Regression

• Project Planning and Risk Management

  Predict project success or failure to aid in risk assessment.

• Quality Assurance

  Predict software defects to improve quality control.

• Customer Segmentation

  Segment customers based on behavior for tailored deliverables.

• Performance Analysis

  Analyze team performance to identify success factors.

Example:

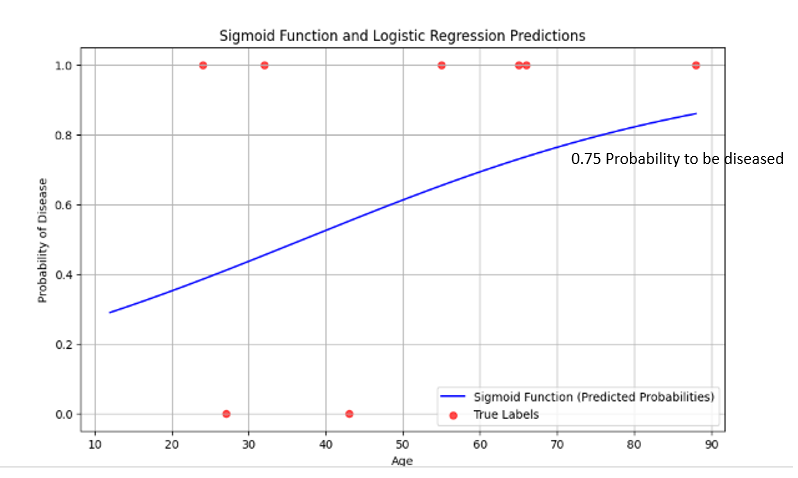

Determine the probability of heart attacks

Implementation Process

Data Collection

Gathers relevant data for analysis.

Data Preprocessing

Cleans and prepares data for regression.

Applying Linear Regression

Implements using tools like Python or R.

Interpreting Results

Analyzes model output to make data-driven decisions.

Examples and Case Studies

Here is the step-by-step process for implementing logistic regression to predict employee attrition using Python.

We'll use a dataset commonly referred to as the "IBM HR Analytics Employee Attrition & Performance"

Download the datasets here: hrfile.csv

import pandas as pd
        import numpy as np
        import matplotlib.pyplot as plt
        import seaborn as sns
        from sklearn.model_selection import train_test_split
        from sklearn.linear_model import LogisticRegression
        from sklearn.metrics import classification_report, confusion_matrix, accuracy_score

        # Load dataset
        # Make sure to replace 'path_to_file.csv' with the actual path to your downloaded dataset file
        df = pd.read_csv('path_to_file.csv')

        # Drop irrelevant columns
        df.drop(['EmployeeCount', 'Over18', 'StandardHours', 'EmployeeNumber'], axis=1, inplace=True)

        # Encode categorical variables
        df = pd.get_dummies(df, drop_first=True)

        # Define features and target variable
        X = df.drop('Attrition_Yes', axis=1)
        y = df['Attrition_Yes']

        # Split the data into training and testing sets
        X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.3, random_state=42)

        # Initialize and train the logistic regression model
        logreg = LogisticRegression(max_iter=1000)
        logreg.fit(X_train, y_train)

        # Predict on the test set
        y_pred = logreg.predict(X_test)

        # Predict probabilities on the test set
        y_prob = logreg.predict_proba(X_test)[:, 1]  # Probabilities for the positive class (Attrition = Yes)

        # Evaluate the model
        print("Accuracy:", accuracy_score(y_test, y_pred))
        print("\nClassification Report:\n", classification_report(y_test, y_pred))
        print("\nConfusion Matrix:\n", confusion_matrix(y_test, y_pred))

        # Plot confusion matrix
        sns.heatmap(confusion_matrix(y_test, y_pred), annot=True, fmt='d', cmap='Blues')
        plt.xlabel('Predicted')
        plt.ylabel('Actual')
        plt.title('Confusion Matrix')
        plt.show()

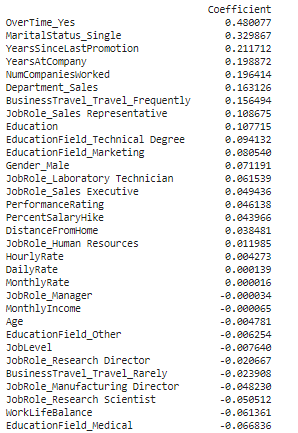

        # Print the coefficients of the features
        coefficients = pd.DataFrame(logreg.coef_[0], X.columns, columns=['Coefficient'])
        print(coefficients.sort_values(by='Coefficient', ascending=False))

        # Plot the S-shaped curve for one feature (e.g., Age)
        # Generate a range of values for Age
        age_range = np.linspace(X['Age'].min(), X['Age'].max(), 300)

        # Create a DataFrame with the mean values for all features except Age
        mean_features = X_train.mean().to_frame().T
        mean_features = mean_features.loc[np.repeat(mean_features.index.values, len(age_range))]
        mean_features['Age'] = age_range

        # Predict probabilities for the age range
        age_prob = logreg.predict_proba(mean_features)[:, 1]

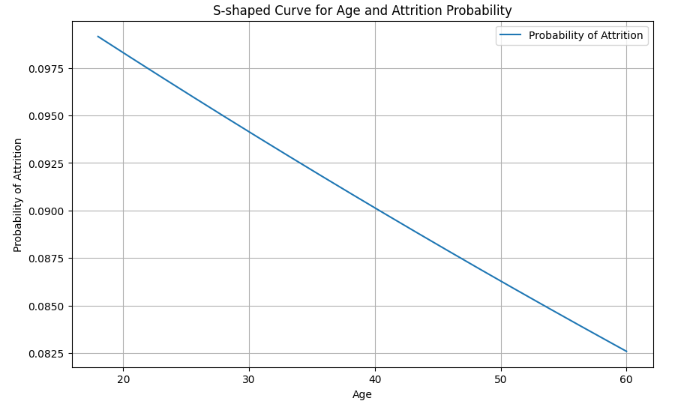

        # Plot the S-shaped curve
        plt.figure(figsize=(10, 6))
        plt.plot(age_range, age_prob, label='Probability of Attrition')
        plt.xlabel('Age')
        plt.ylabel('Probability of Attrition')
        plt.title('S-shaped Curve for Age and Attrition Probability')
        plt.legend()
        plt.grid()
        plt.show()

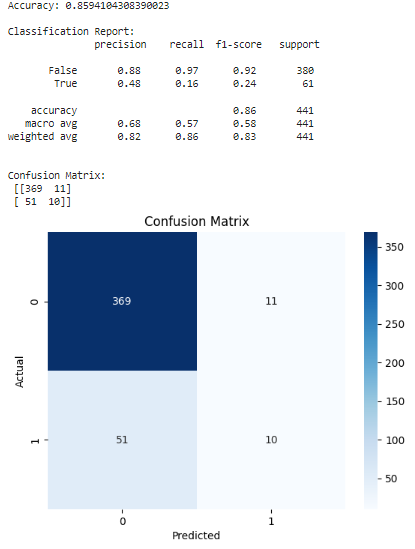

Here are the results of the logistic regression model's performance evaluation
